Falmec
🏷️ Product Titles & SKUs
Plane Plus Island 90 cm – White
• SKU/EAN: 8034122367040
Plane Plus Island 90 cm – Inox
• SKU/EAN: 8034122367057
Plane Plus Island 90 cm – Black
• SKU/EAN: 8034122367064

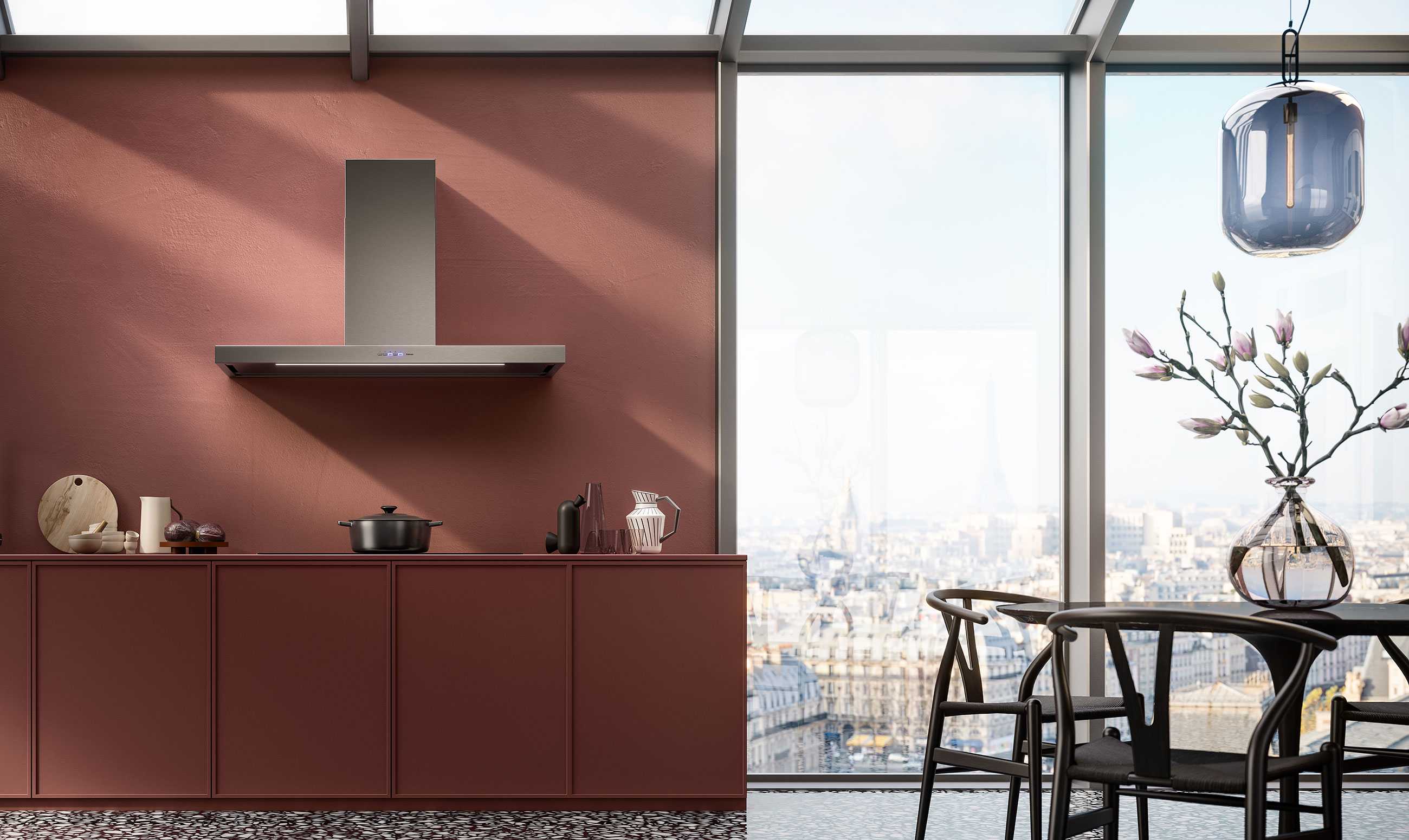

Plane Plus Wall 90 cm – White
• SKU/EAN: 8034122367118
Plane Plus Wall 90 cm – Inox
• SKU/EAN: 8034122367125
Plane Plus Wall 90 cm – Black
• SKU/EAN: 8034122367132
Plane Plus Island 120 cm – White
• SKU/EAN: 8034122367019
Plane Plus Island 120 cm – Inox
• SKU/EAN: 8034122367026
Plane Plus Island 120 cm – Black
• SKU/EAN: 8034122367033
Plane Plus Wall 120 cm – White
• SKU/EAN: 8034122367071
Plane Plus Wall 120 cm – Inox
• SKU/EAN: 8034122367088
Plane Plus Wall 120 cm – Black
• SKU/EAN: 8034122367095
👉 Upgrade your kitchen ventilation—choose Plane Plus Island or Wall Hoods in either 90 cm or 120 cm widths, available in White, Inox, or Black finishes. Add optional Carbon.Zeo® Microtech filter (KACL.1039), Air-Flow Conveyor Kit (KACL.866), extension chimneys (KACL.557/KACL.1032/KACL.1033), and remote control (105080053) for fully tailored extraction or recirculation performance.
🔎 Product Overview
The Plane Plus series brings together 90 cm and 120 cm Island and Wall hoods—each offered in Painted White Steel, Scotch-Brite AISI 304 Inox, or Painted Black Steel. Engineered by Falmec Lab, these hoods feature:
Perimeter Suction Technology: Air is drawn uniformly around the canopy perimeter, eliminating dead zones and ensuring fast, even extraction.
Powerful 800 m³/h Nominal Motor: Achieves up to 641 m³/h measured airflow (IEC 61591), with four speeds accommodating everything from gentle simmer extraction (Speed 1) to heavy-sear smoke removal (Boost).
Dual-Mode Ventilation:
Ducted Extraction via a Ø 150 mm collar.
Filter-Only Recirculation using the optional KACL.1039 Carbon.Zeo® Microtech Filter (available on hoods produced from Sept 2024 onward).
Dynamic, Dimmable “Dynamic Light” LED Lighting:
90 cm Island: Two strip LEDs (2 700 K–5 600 K) deliver ~185 lux at cooktop.
90 cm Wall: One strip LED (2 700 K–5 600 K) delivers ~128 lux at cooktop.
120 cm Island: Two strip LEDs (2 700 K–5 600 K) deliver ~266 lux at cooktop.
120 cm Wall: One strip LED (2 700 K–5 600 K) delivers ~114 lux at cooktop.
Ultra-Slim Canopy: Only 40 mm tall, creating a floating, minimalist look—ideal for modern interiors.
Electronic Capacitive Touch Control + Dialogue System: Displays “CL” when the grease filter needs cleaning and “CA” when the Carbon.Zeo® filter requires regeneration.
Whisper-Quiet Operation: Noise ranges from 51 dB(A) at Speed 1 to 69 dB(A) at Boost (IEC 60704-2-13).
All models use a removable, washable metallic grease filter. Recirculation-mode installations require the KACL.1039 filter (sold separately). Island versions suspend over islands, while Wall versions mount beneath cabinets or against backsplashes. Telescopic-Wall models include an adjustable chimney to conceal duct runs up to 1 105 mm.
📐 Technical Specifications
90 cm Models
Attribute Island 90 cm – White (8034122367040) Island 90 cm – Inox (8034122367057) Island 90 cm – Black (8034122367064) Wall 90 cm – White (8034122367118) Wall 90 cm – Inox (8034122367125) Wall 90 cm – Black (8034122367132) Finish & Material Painted White Steel Scotch-Brite AISI 304 Stainless Steel Painted Black Steel Painted White Steel Scotch-Brite AISI 304 Stainless Steel Painted Black Steel Design Plane Plus Island Hood – 90 cm Plane Plus Island Hood – 90 cm Plane Plus Island Hood – 90 cm Plane Plus Wall Hood – 90 cm Plane Plus Wall Hood – 90 cm Plane Plus Wall Hood – 90 cm Perimeter Suction Yes Yes Yes Yes Yes Yes Control Capacitive Touch + Dialogue System Capacitive Touch + Dialogue System Capacitive Touch + Dialogue System Capacitive Touch + Dialogue System Capacitive Touch + Dialogue System Capacitive Touch + Dialogue System Remote Control Optional (105080053) Optional (105080053) Optional (105080053) Optional (105080053) Optional (105080053) Optional (105080053) Lighting 2 × Strip LED
2 700 K–5 600 K (dimmable)
Emiddle ≈ 185 lux 2 × Strip LED
2 700 K–5 600 K (dimmable)
Emiddle ≈ 185 lux 2 × Strip LED
2 700 K–5 600 K (dimmable)
Emiddle ≈ 185 lux 1 × Strip LED
2 700 K–5 600 K (dimmable)
Emiddle ≈ 128 lux 1 × Strip LED
2 700 K–5 600 K (dimmable)
Emiddle ≈ 128 lux 1 × Strip LED
2 700 K–5 600 K (dimmable)
Emiddle ≈ 128 lux Filters • Washable metallic grease filter
• Optional KACL.1039 Carbon.Zeo® filter • Washable metallic grease filter
• Optional KACL.1039 Carbon.Zeo® filter • Washable metallic grease filter
• Optional KACL.1039 Carbon.Zeo® filter • Washable metallic grease filter
• Optional KACL.1039 Carbon.Zeo® filter • Washable metallic grease filter
• Optional KACL.1039 Carbon.Zeo® filter • Washable metallic grease filter
• Optional KACL.1039 Carbon.Zeo® filter Motor & Airflow Nominal 800 m³/h
641 m³/h measured (IEC 61591) Nominal 800 m³/h
641 m³/h measured (IEC 61591) Nominal 800 m³/h
641 m³/h measured (IEC 61591) Nominal 800 m³/h
641 m³/h measured (IEC 61591) Nominal 800 m³/h
641 m³/h measured (IEC 61591) Nominal 800 m³/h
641 m³/h measured (IEC 61591) Noise Levels (dB(A), IEC 60704-2-13) Sp 1: 51 Sp 2: 61 Sp 3: 66 Boost: 69 Sp 1: 51 Sp 2: 61 Motor Power (W) Sp 1: 145 Sp 2: 175 Sp 3: 215 Sp 4: 245 Sp 1: 145 Sp 2: 175 Duct Outlet Diameter Ø 150 mm Ø 150 mm Ø 150 mm Ø 150 mm Ø 150 mm Ø 150 mm Min. Clearance to Hob Electric 52 cm
Gas 60 cm Electric 52 cm
Gas 60 cm Electric 52 cm
Gas 60 cm Electric 52 cm
Gas 60 cm Electric 52 cm
Gas 60 cm Electric 52 cm
Gas 60 cm Canopy (W × D × H) 900 × 480 × 40 mm 900 × 480 × 40 mm 900 × 480 × 40 mm 900 × 480 × 40 mm 900 × 480 × 40 mm 900 × 480 × 40 mm Gross / Net Weight 39.4 kg / 32.8 kg 39.4 kg / 32.8 kg 39.4 kg / 32.8 kg 28.4 kg / 23 kg 28.4 kg / 23 kg 28.4 kg / 23 kg Packaging Dimensions 1 035 × 482 × 740 mm 1 035 × 482 × 740 mm 1 035 × 482 × 740 mm 995 × 482 × 595 mm 995 × 482 × 595 mm 995 × 482 × 595 mm Max Power Consumption 280 W 280 W 280 W 280 W 280 W 280 W Voltage / Frequency 220–240 V ~ 50–60 Hz 220–240 V ~ 50–60 Hz 220–240 V ~ 50–60 Hz 220–240 V ~ 50–60 Hz 220–240 V ~ 50–60 Hz 220–240 V ~ 50–60 Hz Energy Label (EU 65/2014) AEC 51.5 kWh/a
EEC B
FDE 29.2
FDEC A
LE 15.4 lux (D)
GFE 80 %C
Qmin 313 m³/h
Qmax 573 m³/h
Qboost 641 m³/h
SPEmin 51 dB(A)
SPEmax 66 dB(A)
SPEboost 69 dB(A)
EEI 55.1 AEC 51.5 kWh/a
EEC B
FDE 29.2
FDEC A
LE 15.4 lux (D)
GFE 80 %C
Qmin 313 m³/h
Qmax 573 m³/h
Qboost 641 m³/h
SPEmin 51 dB(A)
SPEmax 66 dB(A)
SPEboost 69 dB(A)
EEI 55.1 AEC 51.5 kWh/a
EEC B
FDE 29.2
FDEC A
LE 15.4 lux (D)
GFE 80 %C
Qmin 313 m³/h
Qmax 573 m³/h
Qboost 641 m³/h
SPEmin 51 dB(A)
SPEmax 66 dB(A)
SPEboost 69 dB(A)
EEI 55.1 AEC 46.9 kWh/a
EEC A
FDE 29.2
FDEC A
LE 22 lux (B)
GFE 80 %C
Qmin 313 m³/h
Qmax 573 m³/h
Qboost 641 m³/h
SPEmin 51 dB(A)
SPEmax 66 dB(A)
SPEboost 69 dB(A)
EEI 52.1 AEC 46.9 kWh/a
EEC A
FDE 29.2
FDEC A
LE 22 lux (B)
GFE 80 %C
Qmin 313 m³/h
Qmax 573 m³/h
Qboost 641 m³/h
SPEmin 51 dB(A)
SPEmax 66 dB(A)
SPEboost 69 dB(A)
EEI 52.1 AEC 46.9 kWh/a
EEC A
FDE 29.2
FDEC A
LE 22 lux (B)
GFE 80 %C
Qmin 313 m³/h
Qmax 573 m³/h
Qboost 641 m³/h
SPEmin 51 dB(A)
SPEmax 66 dB(A)
SPEboost 69 dB(A)
EEI 52.1
120 cm Models
Attribute Island 120 cm – White (8034122367019) Island 120 cm – Inox (8034122367026) Island 120 cm – Black (8034122367033) Wall 120 cm – White (8034122367071) Wall 120 cm – Inox (8034122367088) Wall 120 cm – Black (8034122367095) Finish & Material Painted White Steel Scotch-Brite AISI 304 Stainless Steel Painted Black Steel Painted White Steel Scotch-Brite AISI 304 Stainless Steel Painted Black Steel Design Plane Plus Island Hood – 120 cm Plane Plus Island Hood – 120 cm Plane Plus Island Hood – 120 cm Plane Plus Wall Hood – 120 cm Plane Plus Wall Hood – 120 cm Plane Plus Wall Hood – 120 cm Perimeter Suction Yes Yes Yes Yes Yes Yes Control Capacitive Touch + Dialogue System Capacitive Touch + Dialogue System Capacitive Touch + Dialogue System Capacitive Touch + Dialogue System Capacitive Touch + Dialogue System Capacitive Touch + Dialogue System Remote Control Optional (105080053) Optional (105080053) Optional (105080053) Optional (105080053) Optional (105080053) Optional (105080053) Lighting 2 × Strip LED
2 700 K–5 600 K (dimmable)
Emiddle ≈ 266 lux 2 × Strip LED
2 700 K–5 600 K (dimmable)
Emiddle ≈ 266 lux 2 × Strip LED
2 700 K–5 600 K (dimmable)
Emiddle ≈ 266 lux 1 × Strip LED
2 700 K–5 600 K (dimmable)
Emiddle ≈ 114 lux 1 × Strip LED
2 700 K–5 600 K (dimmable)
Emiddle ≈ 114 lux 1 × Strip LED
2 700 K–5 600 K (dimmable)
Emiddle ≈ 114 lux Filters • Washable metallic grease filter
• Optional KACL.1039 Carbon.Zeo® filter • Washable metallic grease filter
• Optional KACL.1039 Carbon.Zeo® filter • Washable metallic grease filter
• Optional KACL.1039 Carbon.Zeo® filter • Washable metallic grease filter
• Optional KACL.1039 Carbon.Zeo® filter • Washable metallic grease filter
• Optional KACL.1039 Carbon.Zeo® filter • Washable metallic grease filter
• Optional KACL.1039 Carbon.Zeo® filter Motor & Airflow Nominal 800 m³/h
641 m³/h measured (IEC 61591) Nominal 800 m³/h
641 m³/h measured (IEC 61591) Nominal 800 m³/h
641 m³/h measured (IEC 61591) Nominal 800 m³/h
641 m³/h measured (IEC 61591) Nominal 800 m³/h
641 m³/h measured (IEC 61591) Nominal 800 m³/h
641 m³/h measured (IEC 61591) Noise Levels (dB(A), IEC 60704-2-13) Sp 1: 51 Sp 2: 61 Sp 3: 66 Boost: 69 Sp 1: 51 Sp 2: 61 Motor Power (W) Sp 1: 145 Sp 2: 175 Sp 3: 215 Sp 4: 245 Sp 1: 145 Sp 2: 175 Duct Outlet Diameter Ø 150 mm Ø 150 mm Ø 150 mm Ø 150 mm Ø 150 mm Ø 150 mm Min. Clearance to Hob Electric 52 cm
Gas 60 cm Electric 52 cm
Gas 60 cm Electric 52 cm
Gas 60 cm Electric 52 cm
Gas 60 cm Electric 52 cm
Gas 60 cm Electric 52 cm
Gas 60 cm Canopy (W × D × H) 1 200 × 480 × 40 mm 1 200 × 480 × 40 mm 1 200 × 480 × 40 mm 1 200 × 480 × 40 mm 1 200 × 480 × 40 mm 1 200 × 480 × 40 mm Gross / Net Weight 45.3 kg / 36.7 kg 45.3 kg / 36.7 kg 45.3 kg / 36.7 kg 33.9 kg / 27.1 kg 33.9 kg / 27.1 kg 33.9 kg / 27.1 kg Packaging Dimensions 1 330 × 482 × 725 mm 1 330 × 482 × 725 mm 1 330 × 482 × 725 mm 1 310 × 482 × 595 mm 1 310 × 482 × 595 mm 1 310 × 482 × 595 mm Max Power Consumption 280 W 280 W 280 W 280 W 280 W 280 W Voltage / Frequency 220–240 V ~ 50–60 Hz 220–240 V ~ 50–60 Hz 220–240 V ~ 50–60 Hz 220–240 V ~ 50–60 Hz 220–240 V ~ 50–60 Hz 220–240 V ~ 50–60 Hz Energy Label (EU 65/2014) AEC 54.4 kWh/a
EEC B
FDE 29.2
FDEC A
LE 16.6 lux (C)
GFE 80 %C
Qmin 313 m³/h
Qmax 573 m³/h
Qboost 641 m³/h
SPEmin 51 dB(A)
SPEmax 66 dB(A)
SPEboost 69 dB(A)
EEI 56.9 AEC 54.4 kWh/a
EEC B
FDE 29.2
FDEC A
LE 16.6 lux (C)
GFE 80 %C
Qmin 313 m³/h
Qmax 573 m³/h
Qboost 641 m³/h
SPEmin 51 dB(A)
SPEmax 66 dB(A)
SPEboost 69 dB(A)
EEI 56.9 AEC 54.4 kWh/a
EEC B
FDE 29.2
FDEC A
LE 16.6 lux (C)
GFE 80 %C
Qmin 313 m³/h
Qmax 573 m³/h
Qboost 641 m³/h
SPEmin 51 dB(A)
SPEmax 66 dB(A)
SPEboost 69 dB(A)
EEI 56.9 AEC 48.5 kWh/a
EEC A
FDE 29.2
FDEC A
LE 14.2 lux (D)
GFE 80 %C
Qmin 313 m³/h
Qmax 573 m³/h
Qboost 641 m³/h
SPEmin 51 dB(A)
SPEmax 66 dB(A)
SPEboost 69 dB(A)
EEI 53.2 AEC 48.5 kWh/a
EEC A
FDE 29.2
FDEC A
LE 14.2 lux (D)
GFE 80 %C
Qmin 313 m³/h
Qmax 573 m³/h
Qboost 641 m³/h
SPEmin 51 dB(A)
SPEmax 66 dB(A)
SPEboost 69 dB(A)
EEI 53.2 AEC 48.5 kWh/a
EEC A
FDE 29.2
FDEC A
LE 14.2 lux (D)
GFE 80 %C
Qmin 313 m³/h
Qmax 573 m³/h
Qboost 641 m³/h
SPEmin 51 dB(A)
SPEmax 66 dB(A)
SPEboost 69 dB(A)
EEI 53.2
🧰 What’s Included
Each Plane Plus Hood (Island or Wall, 90 cm & 120 cm)
1 × Plane Plus Hood Body
• 90 cm Canopy (W 900 × D 480 × H 40 mm) or 120 cm Canopy (W 1 200 × D 480 × H 40 mm)in chosen finish:
– Painted White Steel (e.g., 8034122367040, 8034122367019)
– Scotch-Brite AISI 304 Inox (e.g., 8034122367057, 8034122367026)
– Painted Black Steel (e.g., 8034122367064, 8034122367033)
• Pre-installed 800 m³/h Brushless Motor Assembly (Top-mounted)
• Integrated Dynamic LED Modules (90 cm: 2 × 10 W island / 1 × 10 W wall; 120 cm: 2 × 10 W island / 1 × 10 W wall), 2 700 K–5 600 K, dimmable
• Electronic Capacitive Touch-Control Panel + Dialogue System (CL/CA prompts)
• Mounting Brackets (Island/Wall as appropriate)
1 × Metallic Grease Filter (Removable, washable aluminum mesh)
1 × Ducting Collar (Ø 150 mm) for direct-vent extraction
1 × Installation & User Manual (Cut-out template, wiring diagram, maintenance schedule)
Optional Accessories (Sold Separately):
• KACL.1039 – Carbon.Zeo® Microtech regenerable filter (Ø 170 mm) for recirculation (available for hoods produced from Sept 2024)
• KACL.866 – Air-Flow Conveyor Kit (optimizes recirculation & noise performance)
• KACL.557#I, KACL.557#N – Extension Chimney H 1200 mm for Island Inox/Black (conceals duct runs in high ceilings)
• KACL.1032#BF, KACL.1032#IF, KACL.1032#NF – Extension Chimney Kits H 700 mm & H 960 mm for Wall (White/Inox/Black)
• KACL.1033#BF, KACL.1033#IF, KACL.1033#NF – Control-Panel Cover Kits (White/Inox/Black) for customization
• 105080053 – Infrared Remote Control (works across all models)
Note:
The Carbon.Zeo® filter (KACL.1039) is available for hoods produced from September 2024onward; install behind the grease filter to run in recirculation mode.
For Island Inox or Black models, use KACL.557#I or KACL.557#N to conceal duct runs in exposed ceilings.
For Wall models, use KACL.1032#BF/IF/NF or KACL.1033#BF/IF/NF sleeves to hide ductwork above the hood.
Always disconnect power at the breaker before installing or servicing to comply with local electrical codes.
💡 Features & Benefits
Invisible Perimeter Suction
The full 900 mm or 1 200 mm canopy edge draws vapors inward, eliminating dead-spot zones—even at low speeds.
Robust 800 m³/h Brushless Motor
Four-speed operation (IEC 61591):
Speed 1 (313 m³/h @ 51 dB(A))
Speed 2 (468 m³/h @ 61 dB(A))
Speed 3 (573 m³/h @ 66 dB(A))
Boost (641 m³/h @ 69 dB(A))
Ideal for everything from gentle simmering to intensive frying.
Dual Extraction & Recirculation Modes
• Extraction: Attach included Ø 150 mm duct collar to vent air outdoors.
• Recirculation: Install KACL.1039 Carbon.Zeo® filter behind grease filter—perfect for apartments or historic homes without ducting. Dialogue System will display “CA” when filter regeneration is required.
Dynamic, Dimmable LED Lighting
• 90 cm Island: 2 × 10 W LEDs produce ~185 lux at cooktop.
• 90 cm Wall: 1 × 10 W LED produces ~128 lux.
• 120 cm Island: 2 × 10 W LEDs produce ~266 lux.
• 120 cm Wall: 1 × 10 W LED produces ~114 lux.
Color temperature adjustable from 2 700 K to 5 600 K for optimal task or ambient lighting.
Ultra-Slim, Floating Design
At 40 mm canopy height, these hoods appear to hover flush under cabinets or ceilings—ideal for minimalist and contemporary kitchen styles.
Fasteel® Anti-Fingerprint Finishes (White/Black)
The Painted White and Black steel surfaces resist smudges and grease. Wipe with a damp microfiber cloth and mild detergent to restore an immaculate appearance.
Scotch-Brite AISI 304 Inox
Corrosion-resistant stainless-steel canopies provide a premium, professional look that complements high-end appliances.
Energy-Efficient Performance
• 90 cm Island & Wall:
– Strategy: AEC 51.5 kWh/a (EEC B) for Islands; AEC 46.9 kWh/a (EEC A) for Walls
– GFE 80 % (C) fat filtration efficiency; Qmin 313 m³/h; Qmax 573 m³/h; Qboost 641 m³/h
• 120 cm Island & Wall:
– Strategy: AEC 54.4 kWh/a (EEC B) for Islands; AEC 48.5 kWh/a (EEC A) for Walls
– GFE 80 % (C); Qmin 313 m³/h; Qmax 573 m³/h; Qboost 641 m³/h
Quiet, High-Performance Engineering
At everyday cooking speeds (Speeds 1–3), noise levels remain between 51 dB(A) and 66 dB(A)—ensuring that conversation still flows, even at Speed 3. Use Boost (up to 69 dB(A)) for immediate smoke clearance when searing or deep-frying.
Easy Installation & Maintenance
• Island Models: Hang from ceiling or extension chimney; includes mounting brackets.
• Wall Models: Install beneath cabinets or on backsplash with minimal clearance.
• All Models: Grease filter is dishwasher-safe or can be hand-washed. Wipe canopies with mild detergent.
2-Year Limited Warranty
Backed by Falmec’s global guarantee against defects in materials or workmanship when installed according to official guidelines.
❓ Frequently Asked Questions
Q1: What clearance is required above the cooktop?
A1:
• All Island 90 cm & 120 cm Models:
Electric hob: ≥ 52 cm
Gas hob: ≥ 60 cm
• All Wall 90 cm & 120 cm Models:
Electric hob: ≥ 52 cm
Gas hob: ≥ 60 cm
Always verify local building codes and hob manufacturer’s guidelines.
Q2: How do I switch between extraction and recirculation modes?
A2:
Extraction Mode: Remove any installed charcoal filter; attach the Ø 150 mm ducting collar to the motor outlet; connect to external ductwork.
Recirculation Mode: Slide in the KACL.1039 Carbon.Zeo® Microtech Filter behind the grease filter; remove the duct collar. The Dialogue System will display “CL” when the grease filter needs washing and “CA” when the charcoal filter needs regeneration or replacement.
Q3: How often should I clean or regenerate filters?
A3:
• Grease Filter: Clean every 2–4 weeks (dishwasher or hand-wash).
• Carbon.Zeo® Filter: Bake at 110 °C for 60 minutes or replace when “CA” appears—approximately every 6–12 months, depending on usage. Each filter regenerates up to 6–8 cycles (~ 3 years).
Q4: How do I maintain Painted White/Black vs. Inox finishes?
A4:
• Painted White/Black: Wipe with a damp microfiber cloth and mild detergent. Avoid abrasive pads or solvents to protect the powder-coat.
• Inox: Wipe with a soft, damp microfiber cloth and dry immediately. Use a non-abrasive stainless-steel cleaner compatible with Fasteel® finishes for stubborn smudges.
Q5: Does installing optional accessories void the warranty?
A5: No. All KACL and 105080053 accessories are factory-approved. When installed per Falmec guidelines, they do not void the hood’s warranty.
Q6: Can these hoods be hardwired instead of using a plug?
A6: Yes. Each hood comes with a Schuko plug but can be hardwired to a dedicated 220–240 V circuit by a qualified electrician.
Q7: What is the warranty period?
A7: All Plane Plus 90 cm and 120 cm models carry a 2-year limited warranty on materials and workmanship when installed according to official guidelines.
🏡 Lifestyle Integration & Pairing Ideas
Sleek White Minimalism
90 cm Wall – White: Install beneath white gloss cabinets in a Scandinavian-style condo. In recirculation mode (with KACL.1039), odors remain contained — perfect for rental units where ducting isn’t allowed.
120 cm Island – White: Suspend above a white-marble island in a minimalist loft. The dynamic LED (~266 lux) highlights food prep; the canopy floats flush beneath a 2 700 mm ceiling.
Professional-Grade Stainless Ensemble
90 cm Island – Inox: Pair with stainless appliances and commercial-grade counters. At Speed 3 (573 m³/h) and 66 dB(A), it clears heavy cooking fumes without overpowering ambient noise.
120 cm Wall – Inox: Mount on a polished Inox backsplash; its slim canopy and integrated controls complement high-end professional kitchens. Use KACL.1032#IF extension sleeve to conceal duct runs in a recessed ceiling.
Bold Black Accents
90 cm Island – Black: Install over a dark granite island with matte-black hardware. The Fasteel® finish resists fingerprints; at Boost (641 m³/h) and 69 dB(A), it handles intense searing smoke quickly.
120 cm Wall – Black: Mount against a charcoal brick wall in a contemporary loft. The low-profile canopy (40 mm) preserves clean sight lines; use KACL.1032#NF extension chimney to hide duct work in a vaulted ceiling.
Historic Kitchen Renovations
90 cm Wall Telescopic – Inox: In heritage homes where external chimneys are restricted, run in recirculation mode with KACL.1039. Telescopic chimney extension (H 700 mm & H 960 mm) conceals filter housing above original plaster ceilings.
120 cm Wall Telescopic – White: Over a restored farmhouse range, use the telescopic chimney (KACL.1032#BF) to tuck ducting into the attic void, preserving original crown moldings.
Chef’s Compact Test Kitchen
90 cm Island – Inox: For cooking demonstrations in small studios, its 185 lux LED lighting and quiet operation (51–66 dB(A)) ensure camera audio remains unaffected. Add KACL.866 Air-Flow Conveyor Kit to optimize recirculated airflow when ducting isn’t feasible.
120 cm Island – Inox: In professional showrooms, the 266 lux LED output highlights gourmet plating; the Speed 3 setting (573 m³/h) maintains smoke-free environments during live cooking.
👉 Complete your Plane Plus solution—select a 90 cm or 120 cm Island or Wall Hood in White, Inox, or Black; add optional KACL.1039 Carbon.Zeo® filter for recirculation, KACL.866 Air-Flow Conveyor Kit for quiet operation, extension chimneys (KACL.557, KACL.1032, KACL.1033) to conceal ducting, and 105080053 remote control for ultimate convenience.
Falmec
🏷️ Product Titles & SKUs
Plane Plus Island 90 cm – White
• SKU/EAN: 8034122367040
Plane Plus Island 90 cm – Inox
• SKU/EAN: 8034122367057
Plane Plus Island 90 cm – Black
• SKU/EAN: 8034122367064
Plane Plus Wall 90 cm – White
• SKU/EAN: 8034122367118
Plane Plus Wall 90 cm – Inox
• SKU/EAN: 8034122367125
Plane Plus Wall 90 cm – Black
• SKU/EAN: 8034122367132
Plane Plus Island 120 cm – White
• SKU/EAN: 8034122367019
Plane Plus Island 120 cm – Inox
• SKU/EAN: 8034122367026
Plane Plus Island 120 cm – Black
• SKU/EAN: 8034122367033
Plane Plus Wall 120 cm – White
• SKU/EAN: 8034122367071
Plane Plus Wall 120 cm – Inox
• SKU/EAN: 8034122367088
Plane Plus Wall 120 cm – Black
• SKU/EAN: 8034122367095
👉 Upgrade your kitchen ventilation—choose Plane Plus Island or Wall Hoods in either 90 cm or 120 cm widths, available in White, Inox, or Black finishes. Add optional Carbon.Zeo® Microtech filter (KACL.1039), Air-Flow Conveyor Kit (KACL.866), extension chimneys (KACL.557/KACL.1032/KACL.1033), and remote control (105080053) for fully tailored extraction or recirculation performance.
🔎 Product Overview
The Plane Plus series brings together 90 cm and 120 cm Island and Wall hoods—each offered in Painted White Steel, Scotch-Brite AISI 304 Inox, or Painted Black Steel. Engineered by Falmec Lab, these hoods feature:
Perimeter Suction Technology: Air is drawn uniformly around the canopy perimeter, eliminating dead zones and ensuring fast, even extraction.
Powerful 800 m³/h Nominal Motor: Achieves up to 641 m³/h measured airflow (IEC 61591), with four speeds accommodating everything from gentle simmer extraction (Speed 1) to heavy-sear smoke removal (Boost).
Dual-Mode Ventilation:
Ducted Extraction via a Ø 150 mm collar.
Filter-Only Recirculation using the optional KACL.1039 Carbon.Zeo® Microtech Filter (available on hoods produced from Sept 2024 onward).
Dynamic, Dimmable “Dynamic Light” LED Lighting:
90 cm Island: Two strip LEDs (2 700 K–5 600 K) deliver ~185 lux at cooktop.
90 cm Wall: One strip LED (2 700 K–5 600 K) delivers ~128 lux at cooktop.
120 cm Island: Two strip LEDs (2 700 K–5 600 K) deliver ~266 lux at cooktop.
120 cm Wall: One strip LED (2 700 K–5 600 K) delivers ~114 lux at cooktop.
Ultra-Slim Canopy: Only 40 mm tall, creating a floating, minimalist look—ideal for modern interiors.
Electronic Capacitive Touch Control + Dialogue System: Displays “CL” when the grease filter needs cleaning and “CA” when the Carbon.Zeo® filter requires regeneration.
Whisper-Quiet Operation: Noise ranges from 51 dB(A) at Speed 1 to 69 dB(A) at Boost (IEC 60704-2-13).
All models use a removable, washable metallic grease filter. Recirculation-mode installations require the KACL.1039 filter (sold separately). Island versions suspend over islands, while Wall versions mount beneath cabinets or against backsplashes. Telescopic-Wall models include an adjustable chimney to conceal duct runs up to 1 105 mm.
📐 Technical Specifications
90 cm Models
| Attribute | Island 90 cm – White (8034122367040) | Island 90 cm – Inox (8034122367057) | Island 90 cm – Black (8034122367064) | Wall 90 cm – White (8034122367118) | Wall 90 cm – Inox (8034122367125) | Wall 90 cm – Black (8034122367132) |
|---|---|---|---|---|---|---|
| Finish & Material | Painted White Steel | Scotch-Brite AISI 304 Stainless Steel | Painted Black Steel | Painted White Steel | Scotch-Brite AISI 304 Stainless Steel | Painted Black Steel |
| Design | Plane Plus Island Hood – 90 cm | Plane Plus Island Hood – 90 cm | Plane Plus Island Hood – 90 cm | Plane Plus Wall Hood – 90 cm | Plane Plus Wall Hood – 90 cm | Plane Plus Wall Hood – 90 cm |
| Perimeter Suction | Yes | Yes | Yes | Yes | Yes | Yes |
| Control | Capacitive Touch + Dialogue System | Capacitive Touch + Dialogue System | Capacitive Touch + Dialogue System | Capacitive Touch + Dialogue System | Capacitive Touch + Dialogue System | Capacitive Touch + Dialogue System |
| Remote Control | Optional (105080053) | Optional (105080053) | Optional (105080053) | Optional (105080053) | Optional (105080053) | Optional (105080053) |
| Lighting | 2 × Strip LED 2 700 K–5 600 K (dimmable) Emiddle ≈ 185 lux | 2 × Strip LED 2 700 K–5 600 K (dimmable) Emiddle ≈ 185 lux | 2 × Strip LED 2 700 K–5 600 K (dimmable) Emiddle ≈ 185 lux | 1 × Strip LED 2 700 K–5 600 K (dimmable) Emiddle ≈ 128 lux | 1 × Strip LED 2 700 K–5 600 K (dimmable) Emiddle ≈ 128 lux | 1 × Strip LED 2 700 K–5 600 K (dimmable) Emiddle ≈ 128 lux |
| Filters | • Washable metallic grease filter • Optional KACL.1039 Carbon.Zeo® filter | • Washable metallic grease filter • Optional KACL.1039 Carbon.Zeo® filter | • Washable metallic grease filter • Optional KACL.1039 Carbon.Zeo® filter | • Washable metallic grease filter • Optional KACL.1039 Carbon.Zeo® filter | • Washable metallic grease filter • Optional KACL.1039 Carbon.Zeo® filter | • Washable metallic grease filter • Optional KACL.1039 Carbon.Zeo® filter |
| Motor & Airflow | Nominal 800 m³/h 641 m³/h measured (IEC 61591) | Nominal 800 m³/h 641 m³/h measured (IEC 61591) | Nominal 800 m³/h 641 m³/h measured (IEC 61591) | Nominal 800 m³/h 641 m³/h measured (IEC 61591) | Nominal 800 m³/h 641 m³/h measured (IEC 61591) | Nominal 800 m³/h 641 m³/h measured (IEC 61591) |
| Noise Levels (dB(A), IEC 60704-2-13) | Sp 1: 51 | Sp 2: 61 | Sp 3: 66 | Boost: 69 | Sp 1: 51 | Sp 2: 61 |
| Motor Power (W) | Sp 1: 145 | Sp 2: 175 | Sp 3: 215 | Sp 4: 245 | Sp 1: 145 | Sp 2: 175 |
| Duct Outlet Diameter | Ø 150 mm | Ø 150 mm | Ø 150 mm | Ø 150 mm | Ø 150 mm | Ø 150 mm |
| Min. Clearance to Hob | Electric 52 cm Gas 60 cm | Electric 52 cm Gas 60 cm | Electric 52 cm Gas 60 cm | Electric 52 cm Gas 60 cm | Electric 52 cm Gas 60 cm | Electric 52 cm Gas 60 cm |
| Canopy (W × D × H) | 900 × 480 × 40 mm | 900 × 480 × 40 mm | 900 × 480 × 40 mm | 900 × 480 × 40 mm | 900 × 480 × 40 mm | 900 × 480 × 40 mm |
| Gross / Net Weight | 39.4 kg / 32.8 kg | 39.4 kg / 32.8 kg | 39.4 kg / 32.8 kg | 28.4 kg / 23 kg | 28.4 kg / 23 kg | 28.4 kg / 23 kg |
| Packaging Dimensions | 1 035 × 482 × 740 mm | 1 035 × 482 × 740 mm | 1 035 × 482 × 740 mm | 995 × 482 × 595 mm | 995 × 482 × 595 mm | 995 × 482 × 595 mm |
| Max Power Consumption | 280 W | 280 W | 280 W | 280 W | 280 W | 280 W |
| Voltage / Frequency | 220–240 V ~ 50–60 Hz | 220–240 V ~ 50–60 Hz | 220–240 V ~ 50–60 Hz | 220–240 V ~ 50–60 Hz | 220–240 V ~ 50–60 Hz | 220–240 V ~ 50–60 Hz |
| Energy Label (EU 65/2014) | AEC 51.5 kWh/a EEC B FDE 29.2 FDEC A LE 15.4 lux (D) GFE 80 %C Qmin 313 m³/h Qmax 573 m³/h Qboost 641 m³/h SPEmin 51 dB(A) SPEmax 66 dB(A) SPEboost 69 dB(A) EEI 55.1 | AEC 51.5 kWh/a EEC B FDE 29.2 FDEC A LE 15.4 lux (D) GFE 80 %C Qmin 313 m³/h Qmax 573 m³/h Qboost 641 m³/h SPEmin 51 dB(A) SPEmax 66 dB(A) SPEboost 69 dB(A) EEI 55.1 | AEC 51.5 kWh/a EEC B FDE 29.2 FDEC A LE 15.4 lux (D) GFE 80 %C Qmin 313 m³/h Qmax 573 m³/h Qboost 641 m³/h SPEmin 51 dB(A) SPEmax 66 dB(A) SPEboost 69 dB(A) EEI 55.1 | AEC 46.9 kWh/a EEC A FDE 29.2 FDEC A LE 22 lux (B) GFE 80 %C Qmin 313 m³/h Qmax 573 m³/h Qboost 641 m³/h SPEmin 51 dB(A) SPEmax 66 dB(A) SPEboost 69 dB(A) EEI 52.1 | AEC 46.9 kWh/a EEC A FDE 29.2 FDEC A LE 22 lux (B) GFE 80 %C Qmin 313 m³/h Qmax 573 m³/h Qboost 641 m³/h SPEmin 51 dB(A) SPEmax 66 dB(A) SPEboost 69 dB(A) EEI 52.1 | AEC 46.9 kWh/a EEC A FDE 29.2 FDEC A LE 22 lux (B) GFE 80 %C Qmin 313 m³/h Qmax 573 m³/h Qboost 641 m³/h SPEmin 51 dB(A) SPEmax 66 dB(A) SPEboost 69 dB(A) EEI 52.1 |
120 cm Models
| Attribute | Island 120 cm – White (8034122367019) | Island 120 cm – Inox (8034122367026) | Island 120 cm – Black (8034122367033) | Wall 120 cm – White (8034122367071) | Wall 120 cm – Inox (8034122367088) | Wall 120 cm – Black (8034122367095) |
|---|---|---|---|---|---|---|
| Finish & Material | Painted White Steel | Scotch-Brite AISI 304 Stainless Steel | Painted Black Steel | Painted White Steel | Scotch-Brite AISI 304 Stainless Steel | Painted Black Steel |
| Design | Plane Plus Island Hood – 120 cm | Plane Plus Island Hood – 120 cm | Plane Plus Island Hood – 120 cm | Plane Plus Wall Hood – 120 cm | Plane Plus Wall Hood – 120 cm | Plane Plus Wall Hood – 120 cm |
| Perimeter Suction | Yes | Yes | Yes | Yes | Yes | Yes |
| Control | Capacitive Touch + Dialogue System | Capacitive Touch + Dialogue System | Capacitive Touch + Dialogue System | Capacitive Touch + Dialogue System | Capacitive Touch + Dialogue System | Capacitive Touch + Dialogue System |
| Remote Control | Optional (105080053) | Optional (105080053) | Optional (105080053) | Optional (105080053) | Optional (105080053) | Optional (105080053) |
| Lighting | 2 × Strip LED 2 700 K–5 600 K (dimmable) Emiddle ≈ 266 lux | 2 × Strip LED 2 700 K–5 600 K (dimmable) Emiddle ≈ 266 lux | 2 × Strip LED 2 700 K–5 600 K (dimmable) Emiddle ≈ 266 lux | 1 × Strip LED 2 700 K–5 600 K (dimmable) Emiddle ≈ 114 lux | 1 × Strip LED 2 700 K–5 600 K (dimmable) Emiddle ≈ 114 lux | 1 × Strip LED 2 700 K–5 600 K (dimmable) Emiddle ≈ 114 lux |
| Filters | • Washable metallic grease filter • Optional KACL.1039 Carbon.Zeo® filter | • Washable metallic grease filter • Optional KACL.1039 Carbon.Zeo® filter | • Washable metallic grease filter • Optional KACL.1039 Carbon.Zeo® filter | • Washable metallic grease filter • Optional KACL.1039 Carbon.Zeo® filter | • Washable metallic grease filter • Optional KACL.1039 Carbon.Zeo® filter | • Washable metallic grease filter • Optional KACL.1039 Carbon.Zeo® filter |
| Motor & Airflow | Nominal 800 m³/h 641 m³/h measured (IEC 61591) | Nominal 800 m³/h 641 m³/h measured (IEC 61591) | Nominal 800 m³/h 641 m³/h measured (IEC 61591) | Nominal 800 m³/h 641 m³/h measured (IEC 61591) | Nominal 800 m³/h 641 m³/h measured (IEC 61591) | Nominal 800 m³/h 641 m³/h measured (IEC 61591) |
| Noise Levels (dB(A), IEC 60704-2-13) | Sp 1: 51 | Sp 2: 61 | Sp 3: 66 | Boost: 69 | Sp 1: 51 | Sp 2: 61 |
| Motor Power (W) | Sp 1: 145 | Sp 2: 175 | Sp 3: 215 | Sp 4: 245 | Sp 1: 145 | Sp 2: 175 |
| Duct Outlet Diameter | Ø 150 mm | Ø 150 mm | Ø 150 mm | Ø 150 mm | Ø 150 mm | Ø 150 mm |
| Min. Clearance to Hob | Electric 52 cm Gas 60 cm | Electric 52 cm Gas 60 cm | Electric 52 cm Gas 60 cm | Electric 52 cm Gas 60 cm | Electric 52 cm Gas 60 cm | Electric 52 cm Gas 60 cm |
| Canopy (W × D × H) | 1 200 × 480 × 40 mm | 1 200 × 480 × 40 mm | 1 200 × 480 × 40 mm | 1 200 × 480 × 40 mm | 1 200 × 480 × 40 mm | 1 200 × 480 × 40 mm |
| Gross / Net Weight | 45.3 kg / 36.7 kg | 45.3 kg / 36.7 kg | 45.3 kg / 36.7 kg | 33.9 kg / 27.1 kg | 33.9 kg / 27.1 kg | 33.9 kg / 27.1 kg |
| Packaging Dimensions | 1 330 × 482 × 725 mm | 1 330 × 482 × 725 mm | 1 330 × 482 × 725 mm | 1 310 × 482 × 595 mm | 1 310 × 482 × 595 mm | 1 310 × 482 × 595 mm |
| Max Power Consumption | 280 W | 280 W | 280 W | 280 W | 280 W | 280 W |
| Voltage / Frequency | 220–240 V ~ 50–60 Hz | 220–240 V ~ 50–60 Hz | 220–240 V ~ 50–60 Hz | 220–240 V ~ 50–60 Hz | 220–240 V ~ 50–60 Hz | 220–240 V ~ 50–60 Hz |
| Energy Label (EU 65/2014) | AEC 54.4 kWh/a EEC B FDE 29.2 FDEC A LE 16.6 lux (C) GFE 80 %C Qmin 313 m³/h Qmax 573 m³/h Qboost 641 m³/h SPEmin 51 dB(A) SPEmax 66 dB(A) SPEboost 69 dB(A) EEI 56.9 | AEC 54.4 kWh/a EEC B FDE 29.2 FDEC A LE 16.6 lux (C) GFE 80 %C Qmin 313 m³/h Qmax 573 m³/h Qboost 641 m³/h SPEmin 51 dB(A) SPEmax 66 dB(A) SPEboost 69 dB(A) EEI 56.9 | AEC 54.4 kWh/a EEC B FDE 29.2 FDEC A LE 16.6 lux (C) GFE 80 %C Qmin 313 m³/h Qmax 573 m³/h Qboost 641 m³/h SPEmin 51 dB(A) SPEmax 66 dB(A) SPEboost 69 dB(A) EEI 56.9 | AEC 48.5 kWh/a EEC A FDE 29.2 FDEC A LE 14.2 lux (D) GFE 80 %C Qmin 313 m³/h Qmax 573 m³/h Qboost 641 m³/h SPEmin 51 dB(A) SPEmax 66 dB(A) SPEboost 69 dB(A) EEI 53.2 | AEC 48.5 kWh/a EEC A FDE 29.2 FDEC A LE 14.2 lux (D) GFE 80 %C Qmin 313 m³/h Qmax 573 m³/h Qboost 641 m³/h SPEmin 51 dB(A) SPEmax 66 dB(A) SPEboost 69 dB(A) EEI 53.2 | AEC 48.5 kWh/a EEC A FDE 29.2 FDEC A LE 14.2 lux (D) GFE 80 %C Qmin 313 m³/h Qmax 573 m³/h Qboost 641 m³/h SPEmin 51 dB(A) SPEmax 66 dB(A) SPEboost 69 dB(A) EEI 53.2 |
🧰 What’s Included
Each Plane Plus Hood (Island or Wall, 90 cm & 120 cm)
1 × Plane Plus Hood Body
• 90 cm Canopy (W 900 × D 480 × H 40 mm) or 120 cm Canopy (W 1 200 × D 480 × H 40 mm)in chosen finish:
– Painted White Steel (e.g., 8034122367040, 8034122367019)
– Scotch-Brite AISI 304 Inox (e.g., 8034122367057, 8034122367026)
– Painted Black Steel (e.g., 8034122367064, 8034122367033)
• Pre-installed 800 m³/h Brushless Motor Assembly (Top-mounted)
• Integrated Dynamic LED Modules (90 cm: 2 × 10 W island / 1 × 10 W wall; 120 cm: 2 × 10 W island / 1 × 10 W wall), 2 700 K–5 600 K, dimmable
• Electronic Capacitive Touch-Control Panel + Dialogue System (CL/CA prompts)
• Mounting Brackets (Island/Wall as appropriate)1 × Metallic Grease Filter (Removable, washable aluminum mesh)
1 × Ducting Collar (Ø 150 mm) for direct-vent extraction
1 × Installation & User Manual (Cut-out template, wiring diagram, maintenance schedule)
Optional Accessories (Sold Separately):
• KACL.1039 – Carbon.Zeo® Microtech regenerable filter (Ø 170 mm) for recirculation (available for hoods produced from Sept 2024)
• KACL.866 – Air-Flow Conveyor Kit (optimizes recirculation & noise performance)
• KACL.557#I, KACL.557#N – Extension Chimney H 1200 mm for Island Inox/Black (conceals duct runs in high ceilings)
• KACL.1032#BF, KACL.1032#IF, KACL.1032#NF – Extension Chimney Kits H 700 mm & H 960 mm for Wall (White/Inox/Black)
• KACL.1033#BF, KACL.1033#IF, KACL.1033#NF – Control-Panel Cover Kits (White/Inox/Black) for customization
• 105080053 – Infrared Remote Control (works across all models)
Note:
The Carbon.Zeo® filter (KACL.1039) is available for hoods produced from September 2024onward; install behind the grease filter to run in recirculation mode.
For Island Inox or Black models, use KACL.557#I or KACL.557#N to conceal duct runs in exposed ceilings.
For Wall models, use KACL.1032#BF/IF/NF or KACL.1033#BF/IF/NF sleeves to hide ductwork above the hood.
Always disconnect power at the breaker before installing or servicing to comply with local electrical codes.
💡 Features & Benefits
Invisible Perimeter Suction
The full 900 mm or 1 200 mm canopy edge draws vapors inward, eliminating dead-spot zones—even at low speeds.Robust 800 m³/h Brushless Motor
Four-speed operation (IEC 61591):Speed 1 (313 m³/h @ 51 dB(A))
Speed 2 (468 m³/h @ 61 dB(A))
Speed 3 (573 m³/h @ 66 dB(A))
Boost (641 m³/h @ 69 dB(A))
Ideal for everything from gentle simmering to intensive frying.
Dual Extraction & Recirculation Modes
• Extraction: Attach included Ø 150 mm duct collar to vent air outdoors.
• Recirculation: Install KACL.1039 Carbon.Zeo® filter behind grease filter—perfect for apartments or historic homes without ducting. Dialogue System will display “CA” when filter regeneration is required.Dynamic, Dimmable LED Lighting
• 90 cm Island: 2 × 10 W LEDs produce ~185 lux at cooktop.
• 90 cm Wall: 1 × 10 W LED produces ~128 lux.
• 120 cm Island: 2 × 10 W LEDs produce ~266 lux.
• 120 cm Wall: 1 × 10 W LED produces ~114 lux.
Color temperature adjustable from 2 700 K to 5 600 K for optimal task or ambient lighting.Ultra-Slim, Floating Design
At 40 mm canopy height, these hoods appear to hover flush under cabinets or ceilings—ideal for minimalist and contemporary kitchen styles.Fasteel® Anti-Fingerprint Finishes (White/Black)
The Painted White and Black steel surfaces resist smudges and grease. Wipe with a damp microfiber cloth and mild detergent to restore an immaculate appearance.Scotch-Brite AISI 304 Inox
Corrosion-resistant stainless-steel canopies provide a premium, professional look that complements high-end appliances.Energy-Efficient Performance
• 90 cm Island & Wall:
– Strategy: AEC 51.5 kWh/a (EEC B) for Islands; AEC 46.9 kWh/a (EEC A) for Walls
– GFE 80 % (C) fat filtration efficiency; Qmin 313 m³/h; Qmax 573 m³/h; Qboost 641 m³/h
• 120 cm Island & Wall:
– Strategy: AEC 54.4 kWh/a (EEC B) for Islands; AEC 48.5 kWh/a (EEC A) for Walls
– GFE 80 % (C); Qmin 313 m³/h; Qmax 573 m³/h; Qboost 641 m³/hQuiet, High-Performance Engineering
At everyday cooking speeds (Speeds 1–3), noise levels remain between 51 dB(A) and 66 dB(A)—ensuring that conversation still flows, even at Speed 3. Use Boost (up to 69 dB(A)) for immediate smoke clearance when searing or deep-frying.Easy Installation & Maintenance
• Island Models: Hang from ceiling or extension chimney; includes mounting brackets.
• Wall Models: Install beneath cabinets or on backsplash with minimal clearance.
• All Models: Grease filter is dishwasher-safe or can be hand-washed. Wipe canopies with mild detergent.2-Year Limited Warranty
Backed by Falmec’s global guarantee against defects in materials or workmanship when installed according to official guidelines.
❓ Frequently Asked Questions
Q1: What clearance is required above the cooktop?
A1:
• All Island 90 cm & 120 cm Models:
Electric hob: ≥ 52 cm
Gas hob: ≥ 60 cm
• All Wall 90 cm & 120 cm Models:
Electric hob: ≥ 52 cm
Gas hob: ≥ 60 cm
Always verify local building codes and hob manufacturer’s guidelines.
Q2: How do I switch between extraction and recirculation modes?
A2:
Extraction Mode: Remove any installed charcoal filter; attach the Ø 150 mm ducting collar to the motor outlet; connect to external ductwork.
Recirculation Mode: Slide in the KACL.1039 Carbon.Zeo® Microtech Filter behind the grease filter; remove the duct collar. The Dialogue System will display “CL” when the grease filter needs washing and “CA” when the charcoal filter needs regeneration or replacement.
Q3: How often should I clean or regenerate filters?
A3:
• Grease Filter: Clean every 2–4 weeks (dishwasher or hand-wash).
• Carbon.Zeo® Filter: Bake at 110 °C for 60 minutes or replace when “CA” appears—approximately every 6–12 months, depending on usage. Each filter regenerates up to 6–8 cycles (~ 3 years).
Q4: How do I maintain Painted White/Black vs. Inox finishes?
A4:
• Painted White/Black: Wipe with a damp microfiber cloth and mild detergent. Avoid abrasive pads or solvents to protect the powder-coat.
• Inox: Wipe with a soft, damp microfiber cloth and dry immediately. Use a non-abrasive stainless-steel cleaner compatible with Fasteel® finishes for stubborn smudges.
Q5: Does installing optional accessories void the warranty?
A5: No. All KACL and 105080053 accessories are factory-approved. When installed per Falmec guidelines, they do not void the hood’s warranty.
Q6: Can these hoods be hardwired instead of using a plug?
A6: Yes. Each hood comes with a Schuko plug but can be hardwired to a dedicated 220–240 V circuit by a qualified electrician.
Q7: What is the warranty period?
A7: All Plane Plus 90 cm and 120 cm models carry a 2-year limited warranty on materials and workmanship when installed according to official guidelines.
🏡 Lifestyle Integration & Pairing Ideas
Sleek White Minimalism
90 cm Wall – White: Install beneath white gloss cabinets in a Scandinavian-style condo. In recirculation mode (with KACL.1039), odors remain contained — perfect for rental units where ducting isn’t allowed.
120 cm Island – White: Suspend above a white-marble island in a minimalist loft. The dynamic LED (~266 lux) highlights food prep; the canopy floats flush beneath a 2 700 mm ceiling.
Professional-Grade Stainless Ensemble
90 cm Island – Inox: Pair with stainless appliances and commercial-grade counters. At Speed 3 (573 m³/h) and 66 dB(A), it clears heavy cooking fumes without overpowering ambient noise.
120 cm Wall – Inox: Mount on a polished Inox backsplash; its slim canopy and integrated controls complement high-end professional kitchens. Use KACL.1032#IF extension sleeve to conceal duct runs in a recessed ceiling.
Bold Black Accents
90 cm Island – Black: Install over a dark granite island with matte-black hardware. The Fasteel® finish resists fingerprints; at Boost (641 m³/h) and 69 dB(A), it handles intense searing smoke quickly.
120 cm Wall – Black: Mount against a charcoal brick wall in a contemporary loft. The low-profile canopy (40 mm) preserves clean sight lines; use KACL.1032#NF extension chimney to hide duct work in a vaulted ceiling.
Historic Kitchen Renovations
90 cm Wall Telescopic – Inox: In heritage homes where external chimneys are restricted, run in recirculation mode with KACL.1039. Telescopic chimney extension (H 700 mm & H 960 mm) conceals filter housing above original plaster ceilings.
120 cm Wall Telescopic – White: Over a restored farmhouse range, use the telescopic chimney (KACL.1032#BF) to tuck ducting into the attic void, preserving original crown moldings.
Chef’s Compact Test Kitchen
90 cm Island – Inox: For cooking demonstrations in small studios, its 185 lux LED lighting and quiet operation (51–66 dB(A)) ensure camera audio remains unaffected. Add KACL.866 Air-Flow Conveyor Kit to optimize recirculated airflow when ducting isn’t feasible.
120 cm Island – Inox: In professional showrooms, the 266 lux LED output highlights gourmet plating; the Speed 3 setting (573 m³/h) maintains smoke-free environments during live cooking.
👉 Complete your Plane Plus solution—select a 90 cm or 120 cm Island or Wall Hood in White, Inox, or Black; add optional KACL.1039 Carbon.Zeo® filter for recirculation, KACL.866 Air-Flow Conveyor Kit for quiet operation, extension chimneys (KACL.557, KACL.1032, KACL.1033) to conceal ducting, and 105080053 remote control for ultimate convenience.
In The Box
1 × Plane Plus Hood Body
1 × Metallic Grease Filter (Removable washable aluminum mesh)
1 × Ducting Collar (Ø 150 mm) for direct-vent extraction
1 × Installation & User Manual (Cut-out template wiring diagram maintenance schedule)
Additional Information
