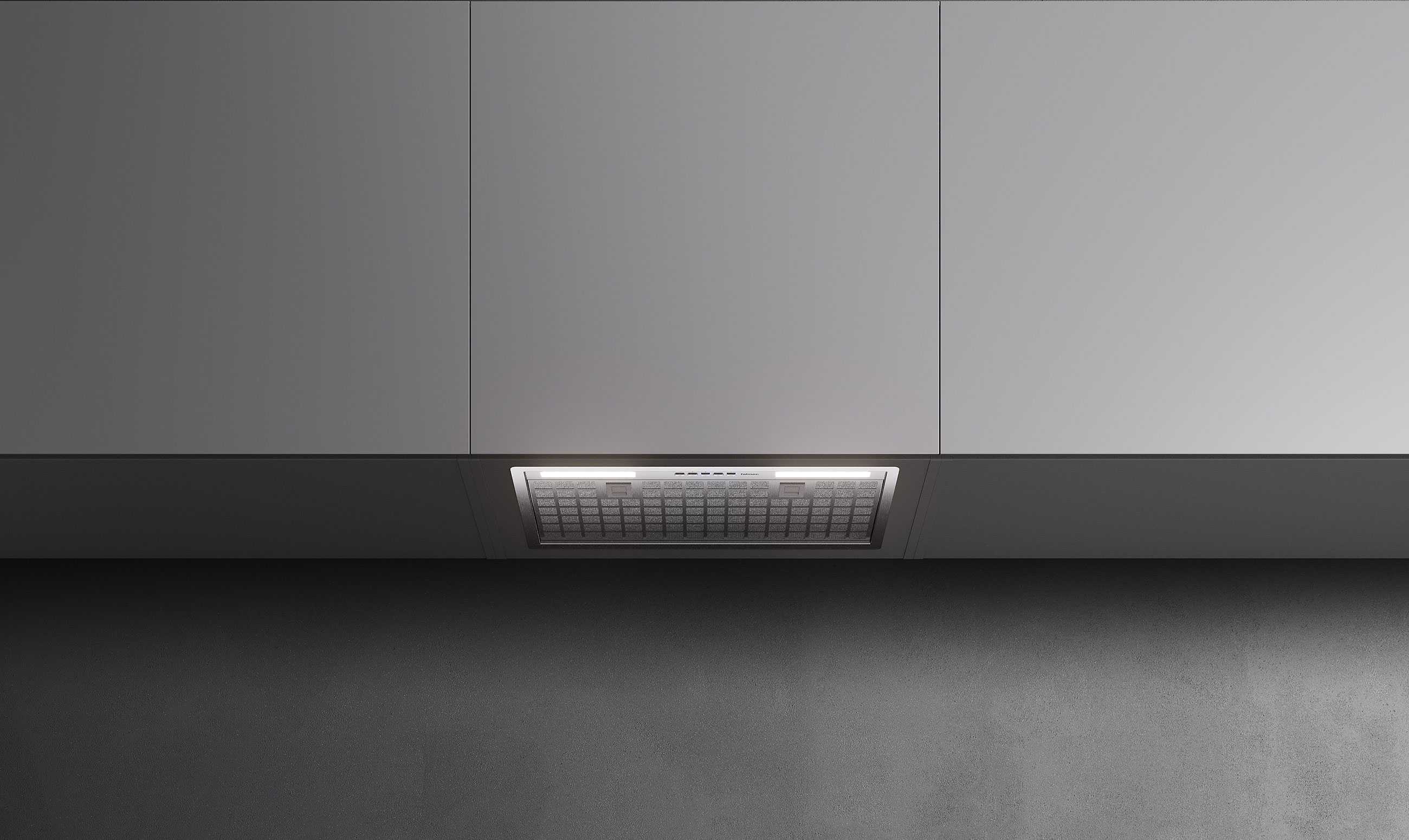

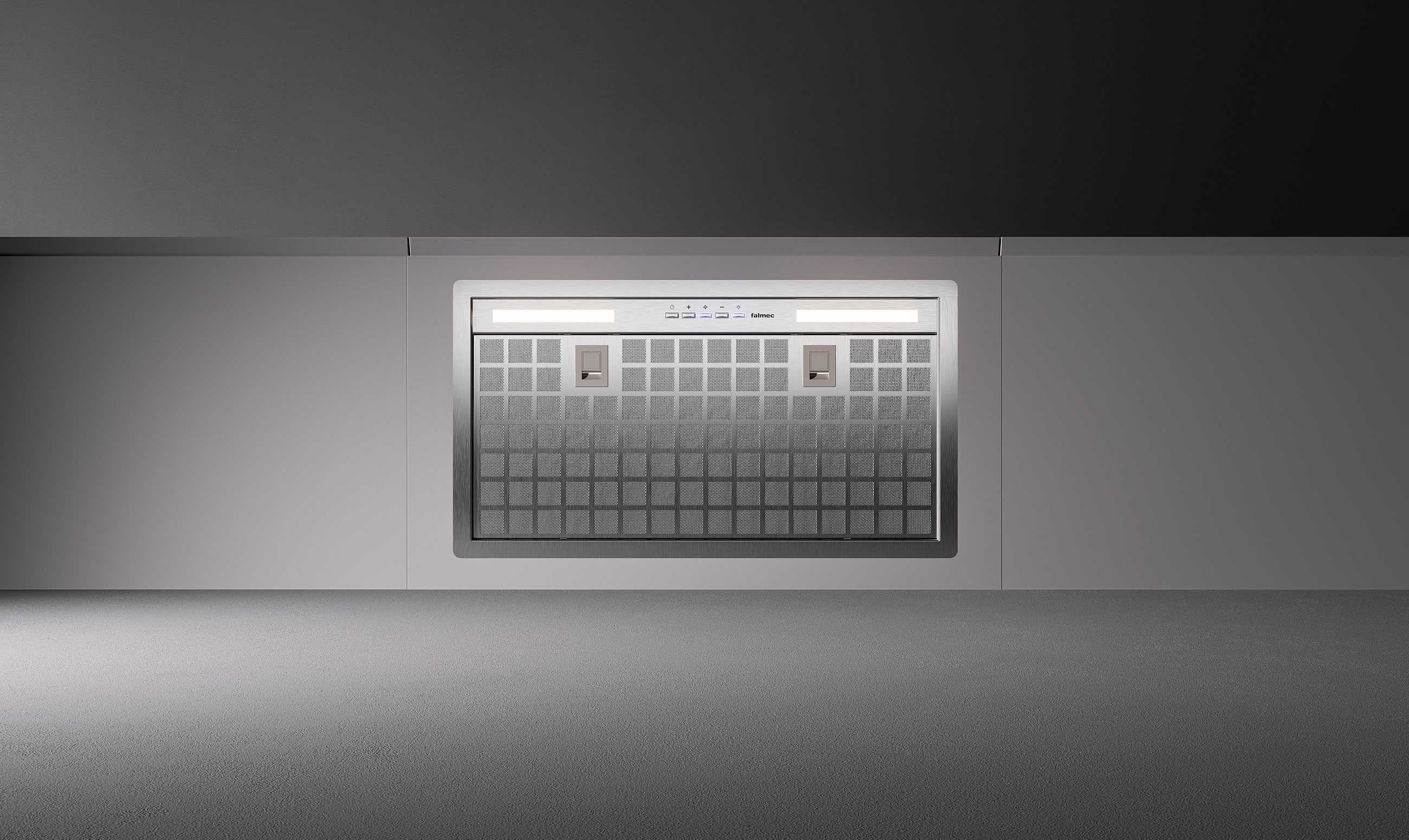

Falmec Gruppo Incasso Plus NRS Series
Built-in canopy hoods engineered for whisper-quiet operation using NRS (Noise Reduction System) technology. Available in 50 cm and 70 cm widths in Scotch-brite Inox (AISI 304). Both models feature an 800 m³/h motor (604 m³/h measured) with Dynamic Light, electronic touch controls, and come with a remote control. Designed to extract or filter with minimal noise (as low as 38 dB(A)), they deliver professional performance in a sleek under-cabinet profile.

---

🏷️ Product Title & SKU

• Falmec Gruppo Incasso Plus NRS 50 cm – Inox – 800 m³/h
  • SKU: 8034122367200
  • Net Weight: 21.6 kg

• Falmec Gruppo Incasso Plus NRS 70 cm – Inox – 800 m³/h
  • SKU: 8034122367248
  • Net Weight: 22.9 kg

---

🔎 Overview

Gruppo Incasso Plus NRS employs Falmec’s Noise Reduction System to minimize operational sound while delivering up to 604 m³/h extraction (IEC 61591). Both 50 cm and 70 cm variants come in durable Scotch-brite Inox, feature dimmable Dynamic Light (2 700 K–5 600 K), and include a remote control and Dialogue-system compatibility for synchronized hob extraction. Choose extracting (ducted Ø 150 mm) or filtering (with optional Carbon.Zeo filter) modes to suit your kitchen layout.

Key highlights:

• NRS Technology: Quieter motor design and optimized airflow paths

• Dynamic Light: Tunable LEDs for both task and ambient illumination

• Electronic Controls + Remote: Intuitive touch interface plus hands-free operation

• Extracting/Filtering Flexibility: Ducted or recirculating installation

---

🌀 Performance & Airflow

• Motor & Capacity: 800 m³/h nominal (604 m³/h measured, IEC 61591)

• Energy Class: A (AEC: 43 kWh/a)

• Fluid Dynamic Efficiency (FDE): 30.7 (Class A)

• Airflow Settings (IEC 61591):

  • Min. Flow: 270 m³/h

  • Standard Flow: 495 m³/h

  • Boost Flow: 604 m³/h

• Noise Levels (IEC 60704-2-13):

  • 38 dB(A) @ Min. Flow

  • 50 dB(A) @ Standard Flow

  • 57 dB(A) @ Boost Flow

• Maximum Pressure: 372 Pa (at best efficiency point)

• Air Outlet: Ø 150 mm

---

💡 Lighting & Control

• Dynamic Light System:

  • 50 cm model: Strip LED 2× 1.7 W (2 700 K–5 600 K)

  • 70 cm model: Strip LED 2× 2.3 W (2 700 K–5 600 K)

  • Average Illuminance (Emiddle): 115 lux (50 cm) / 81 lux (70 cm)

• Dimmable Touch Interface: Four intensity levels for both light and fan speed

• Included Remote Control: Code 105080053 for wireless operation

• Dialogue System Compatibility: Auto-adjust extraction with compatible Falmec hobs

---

💧 Filtration & Maintenance

• Metallic Grease Filter: Removable, dishwasher-safe for easy cleaning

• Carbon.Zeo Microtech Regenerable Filter (Optional): Code KACL.1039 (available from Sept 2024) for filtering mode (no replacement needed)

• Optional Charcoal Filter: Ø 170 mm Type 6 (code 103050091) for recirculation

• Slide-Out Design: Filters and optional Carbon.Zeo filter slide out for quick maintenance

---

🛠 Design & Installation

• Built-In Canopy Profile: Flush-mount under cabinetry (Depth: 295 mm; Height: 333 mm)

• Perimeter Suction: Captures vapors at hood edges for uniform extraction

• Recommended Mounting Heights:

  • Electric Hob: 52 cm minimum clearance

  • Gas Hob: 63 cm minimum clearance

• Materials/Finish: Scotch-brite stainless steel (AISI 304)

• Power & Consumption: 220–240 V / 50–60 Hz; Max 280 W

---

🧰 What’s Included

• Hood body with integrated 800 m³/h motor

• Metallic grease filter (dishwasher-safe)

• Remote control (code 105080053)

• Installation template, mounting brackets & user manual

Optional Accessories (sold separately):
• Carbon.Zeo filter KACL.1039 (50 cm & 70 cm)
• Charcoal filter Ø 170 mm (code 103050091)

---

✅ Product Highlights

• NRS (Noise Reduction System): Ensures a whisper-quiet kitchen (as low as 38 dB(A) on Min. Flow) without sacrificing extraction power

• Dynamic Light: Tunable 2 700 K–5 600 K LED strips for both precise task lighting and ambient mood lighting (115 lux on 50 cm; 81 lux on 70 cm)

• Energy Class A: Efficient 43 kWh/a annual consumption, reducing running costs compared to lower-rated models

• Extracting/Filtering Flexibility: Ducted installation (Ø 150 mm) or recirculating with optional Carbon.Zeo or charcoal filter

• Scotch-brite Inox Finish: Resists fingerprints, matches premium stainless appliances

---

📏 Technical Specifications

Feature / Model	50 cm NRS (8034122367200)	70 cm NRS (8034122367248)
Width	50 cm	70 cm
Materials / Finish	Scotch-brite stainless steel (AISI 304)	Scotch-brite stainless steel (AISI 304)
Technology	NRS (Noise Reduction System)	NRS (Noise Reduction System)
Control	Electronic touch + Remote + Dialogue system	Electronic touch + Remote + Dialogue system
Function	Extracting / Filtering	Extracting / Filtering
Lighting	2× 1.7 W LED (2 700 K–5 600 K), dimmable	2× 2.3 W LED (2 700 K–5 600 K), dimmable
Average Illuminance	115 lux	81 lux
Filters	Metallic grease; Carbon.Zeo optional	Metallic grease; Carbon.Zeo optional
Min. Electric Hob Distance	52 cm	52 cm
Min. Gas Hob Distance	63 cm	63 cm
Motor Nominal / Measured	800 m³/h / 604 m³/h	800 m³/h / 604 m³/h
Airflow (Min / Std / Boost)	270 / 495 / 604 m³/h	270 / 495 / 604 m³/h
Noise (Min / Std / Boost)	38 / 50 / 57 dB(A)	38 / 50 / 57 dB(A)
Energy Class / AEC	A / 43 kWh/a	A / 43 kWh/a
Fluid Dynamic Efficiency (FDE)	30.7 (Class A)	30.7 (Class A)
GFE / GFEC	80 / C	80 / C
P₀ / Pₛ (Standby)	0 W / 0.48 W	0 W / 0.48 W
F / EEI	0.9 / 50.6	0.9 / 50.6
Q₍bep₎ / P₍bep₎	366 m³/h / 372 Pa	366 m³/h / 372 Pa
W₍bep₎ (Best Efficiency)	123 W	123 W
WL (Lighting Power)	3.5 W	4.5 W
Emiddle (Average Illuminance)	115 lux	81 lux
Lwa-SPEmax (Max Noise)	50 dB(A)	50 dB(A)
Maximum Consumption	280 W	280 W
Voltage / Frequency	220–240 V / 50–60 Hz	220–240 V / 50–60 Hz
Net Weight	21.6 kg	22.9 kg
Gross Weight	26.2 kg	27.4 kg
Packaging (L × H × P)	950 × 412 × 655 mm	950 × 412 × 655 mm

Q₍min₎, Q₍max₎, and Q₍boost₎ values measured per IEC 61591; Noise levels per IEC 60704-2-13; Energy classes per EU 65/2014.

---

❓ Frequently Asked Questions

1. What is NRS Technology?
   NRS (Noise Reduction System) uses optimized motor components and airflow channels to reduce operational noise. It lowers the perceived sound level by up to 12 dB(A) compared to standard extraction hoods.

2. Can I install this hood in filtering (recirculating) mode?
   Yes—fit the optional Carbon.Zeo Microtech regenerable filter (KACL.1039) or charcoal filter Ø 170 mm (code 103050091). Switch the hood to Filtering function, and air will be purified before recirculation.

3. How often should I clean or replace filters?

   • Grease filter: Clean every 1–2 months (dishwasher or hand wash).

   • Carbon.Zeo filter: Regenerable indefinitely—no replacement needed (if installed).

   • Charcoal filter: Replace every 6–12 months depending on usage.

4. Is remote control included?
   Yes—each hood ships with an infrared remote control (code 105080053) for wireless speed and lighting adjustment.

5. What are the recommended mounting heights above my hob?

   • Electric hob: Minimum 52 cm clearance

   • Gas hob: Minimum 63 cm clearance

6. How do I maintain the No-Drop system?
   (NRS models do not include No-Drop; please refer to the Gruppo Incasso Plus No-Drop series for anti-condensation technology.)

7. What warranty does Falmec offer?
   Standard 2-year manufacturer warranty. Extended plans available through authorized dealers.

---

🏡 Lifestyle Integration & Pairing Ideas

• Quiet Open-Plan Living: With noise levels as low as 38 dB(A), enjoy conversation and entertainment in adjacent living areas while cooking.

• Seamless Under-Cabinet Aesthetics: Flush-mount beneath upper cabinets to maintain clean sightlines in modern kitchens; pairs beautifully with quartz or concrete countertops.

• Customizable Lighting Ambiance: Dial Dynamic Light to a cozy 2 700 K in the evening for a restaurant-style ambiance; switch to 5 600 K daytime mode for precise prep lighting.

• Coordinated Stainless Steel Suite: Match the Scotch-brite Inox finish with stainless-steel appliances (oven, fridge, dishwasher) and brushed-steel hardware for a unified, professional look.

• Island or Peninsula Configuration: Perfect for island cooktops when venting to an overhead plenum—perimeter suction efficiently removes vapors from all sides.

• Family-Friendly Performance: Low noise and optional filtering mode make it ideal for households with children or open sightlines to living areas.

---
